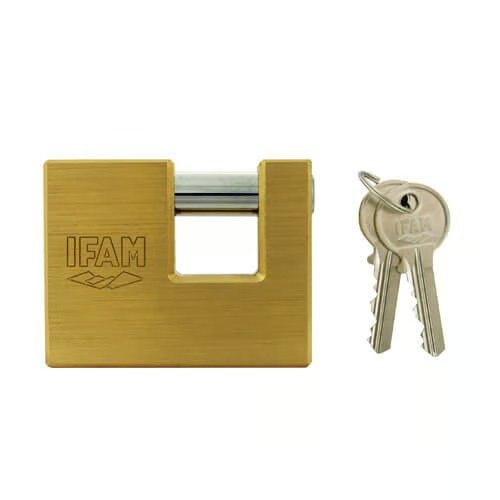

Ifam U Series Brass Shutter Padlock

Compare

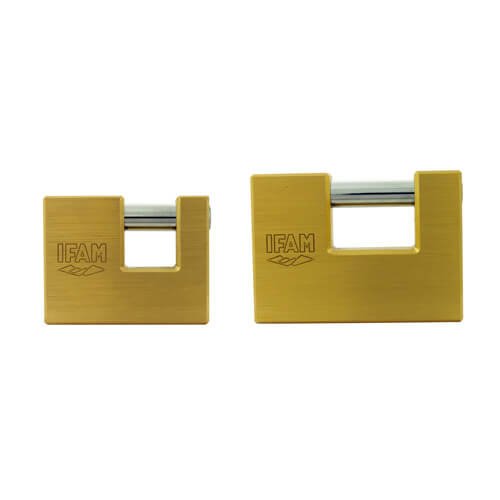

Available in two sizes (70mm and 90 mm), the U Series security padlocksfrom IFAM are especially designed for vertical grille type closures andshutters. It can also be used with H14 and M10 chains from IFAM andinclude key profiles that are compatible

£21.15

Available in two sizes (70mm and 90 mm), the U Series security padlocksfrom IFAM are especially designed for vertical grille type closures andshutters. It can also be used with H14 and M10 chains from IFAM andinclude key profiles that are compatible

Opening / locking: Ball bearing locking system. Key retention system when the padlock is open.

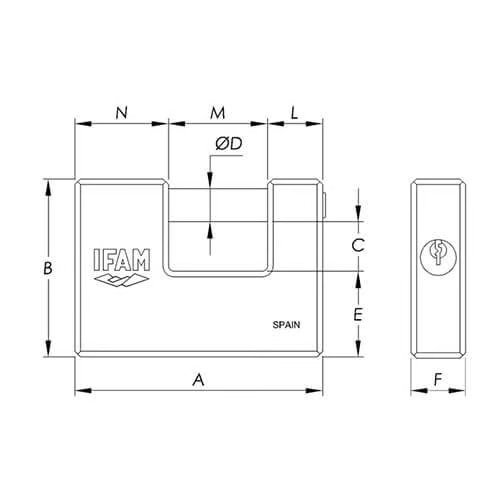

U70 padlock U90 padlock
Body base (A) 70mm 90mm
Body height (B) 55mm 64.5mm
Shackle height (C) 15.5mm 17.5mm
Shackle diameter (D) 12mm 12mm
Distance from the padlock base to the shackle base (E) 24mm 31.4mm
Body thickness (F) 20mm 20mm
Shackle span (M) 22mm 36mm
Padlock’s large flap’s length (N) 34mm 34mm
Padlock’s short flap’s length (L) 14mm 20mm
  • 2 keys
  • Key retaining
  • Automatic locking
  • Key opposite end to bolt
  • Solid extruded brass body with carbon nitride hardened shackle
  • Ball bearing locking mechanism
  • Key at the opposite end to the pin
  • Keyed alike versions on ongoing numbers

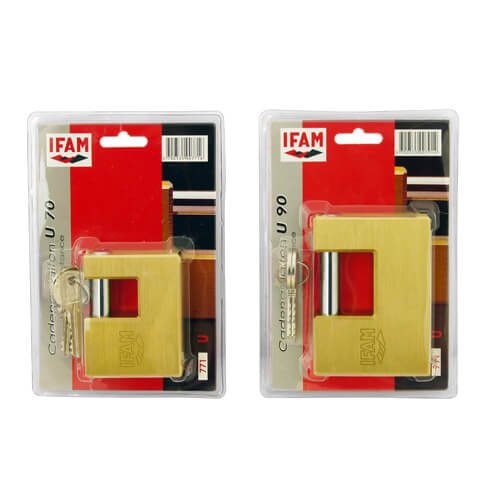

  • Visi-packed
  • Boxed for keyed aliked version
SKU: N/A Categories: , Brand:
Keyed Alike/Differ

Keyed To Differ
